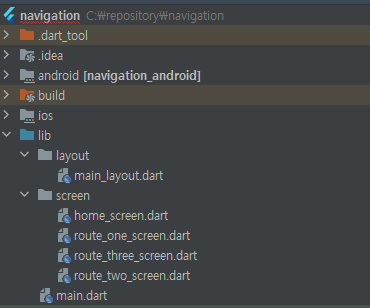

[flutter] navigation

1)

2) main.dart

import 'package:flutter/material.dart';
import 'package:navigation/screen/home_screen.dart';
import 'package:navigation/screen/route_one_screen.dart';
import 'package:navigation/screen/route_three_screen.dart';
import 'package:navigation/screen/route_two_screen.dart';

void main() {
  runApp(
    MaterialApp(
      // home: HomeScreen(),
      initialRoute: '/',
      routes: {
        '/': (context) => HomeScreen(),
        '/one': (context) => RouteOneScreen(),
        '/two': (context) => RouteTwoScreen(),
        '/three': (context) => RouteThreeScreen(),
      },
    ),
  );
}

3) layout/main_layout.dart

import 'package:flutter/material.dart';

class MainLayout extends StatelessWidget {
  final String title;
  final List<Widget> children;

  const MainLayout({Key? key, required this.title, required this.children,}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(
          title,
        ),
      ),
      body: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 8.0),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          crossAxisAlignment: CrossAxisAlignment.stretch,
          children: children,
        ),
      ),
    );
  }
}

4) screen/

home_screen.dart

import 'package:flutter/material.dart';
import 'package:navigation/layout/main_layout.dart';
import 'package:navigation/screen/route_one_screen.dart';

class HomeScreen extends StatelessWidget {
  const HomeScreen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return WillPopScope(
      onWillPop: () async {
        final canPop = Navigator.of(context).canPop();

        return canPop;
      },
      child: MainLayout(
        title: 'HomeScreen',
        children: [
          ElevatedButton(
            onPressed: () {
              print(Navigator.of(context).canPop());
            },
            child: Text(
              'Can Pop',
            ),
          ),
          ElevatedButton(
            onPressed: () {
              Navigator.of(context).maybePop();
            },
            child: Text(
              'Maybe Pop',
            ),
          ),
          ElevatedButton(
            onPressed: () {
              Navigator.of(context).pop();
            },
            child: Text(
              'Pop',
            ),
          ),
          ElevatedButton(
            onPressed: () async {
              final result = await Navigator.of(context).push(
                MaterialPageRoute(
                  builder: (BuildContext context) => RouteOneScreen(
                    number: 123,
                  ),
                ),
              );
              print(result);
            },
            child: Text(
              'Push',
            ),
          ),
        ],
      ),
    );
  }
}

route_one_screen.dart

import 'package:flutter/material.dart';
import 'package:navigation/screen/route_two_screen.dart';

class RouteOneScreen extends StatelessWidget {
  final int? number;

  const RouteOneScreen({
    Key? key,
    this.number,
  }) : super(key: key);

  @override
  Widget build(BuildContext context) {
    final argument = ModalRoute.of(context)!.settings.arguments;

    return Scaffold(
      appBar: AppBar(
        title: Text('Route One'),
      ),
      body: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 8.0),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          crossAxisAlignment: CrossAxisAlignment.stretch,
          children: [
            Text(
              '$number',
              textAlign: TextAlign.center,
            ),
            ElevatedButton(
              onPressed: () {
                print(Navigator.of(context).canPop());
              },
              child: Text(
                'Can Pop',
              ),
            ),
            ElevatedButton(
              onPressed: () {
                Navigator.of(context).maybePop();
              },
              child: Text(
                'Maybe Pop',
              ),
            ),
            ElevatedButton(
              onPressed: () {
                Navigator.of(context).pop(456);
              },
              child: Text(
                'Pop',
              ),
            ),
            ElevatedButton(
              onPressed: () {
                Navigator.of(context).push(
                  MaterialPageRoute(
                    builder: (BuildContext context) => RouteTwoScreen(),
                    settings: RouteSettings(
                      arguments: 789,
                    ),
                  ),
                );
              },
              child: Text(
                'Push',
              ),
            ),
          ],
        ),
      ),
    );
  }
}

route_two_screen.dart

import 'package:flutter/material.dart';
import 'package:navigation/layout/main_layout.dart';
import 'package:navigation/screen/route_three_screen.dart';

class RouteTwoScreen extends StatelessWidget {
  const RouteTwoScreen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    final arguments = ModalRoute.of(context)!.settings.arguments;

    return MainLayout(
      title: 'Route Two',
      children: [
        Text(
          'arguments: $arguments',
          textAlign: TextAlign.center,
        ),
        ElevatedButton(
          onPressed: () {
            Navigator.of(context).pop();
          },
          child: Text(
            'Pop',
          ),
        ),
        ElevatedButton(
          onPressed: () {
            Navigator.of(context).pushNamed('/three', arguments: 999);
          },
          child: Text(
            'Push Named',
          ),
        ),
        ElevatedButton(
          onPressed: () {
            // [HomeScreen(), RouteOne(), RouteTwo(), RouteThree()]
            // [HomeScreen(), RouteOne(), RouteThree()]
            Navigator.of(context).pushReplacementNamed('/three');
          },
          child: Text(
            'Push Replacement',
          ),
        ),
        ElevatedButton(
          onPressed: () {
            // [HomeScreen(), RouteOne(), RouteTwo(), RouteThree()]
            // [HomeScreen()]
            Navigator.of(context).pushNamedAndRemoveUntil(
              '/three',
              (route) => route.settings.name == '/',
            );
          },
          child: Text(
            'Push Remove and Until',
          ),
        ),
      ],
    );
  }
}

route_three_screen.dart

import 'package:flutter/material.dart';
import 'package:navigation/layout/main_layout.dart';

class RouteThreeScreen extends StatelessWidget {
  const RouteThreeScreen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    final argument = ModalRoute.of(context)!.settings.arguments;

    return MainLayout(
      title: 'Route Three',
      children: [
        Text(
          'argument: $argument',
          textAlign: TextAlign.center,
        ),
        ElevatedButton(
          onPressed: () {
            Navigator.of(context).pop();
          },
          child: Text(
            'Pop',
          ),
        ),
      ],
    );
  }
}

5)

HomeScreen

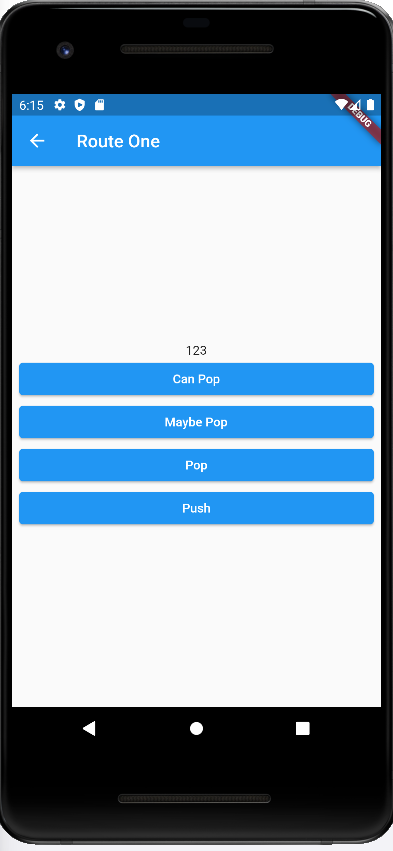

RouteOne

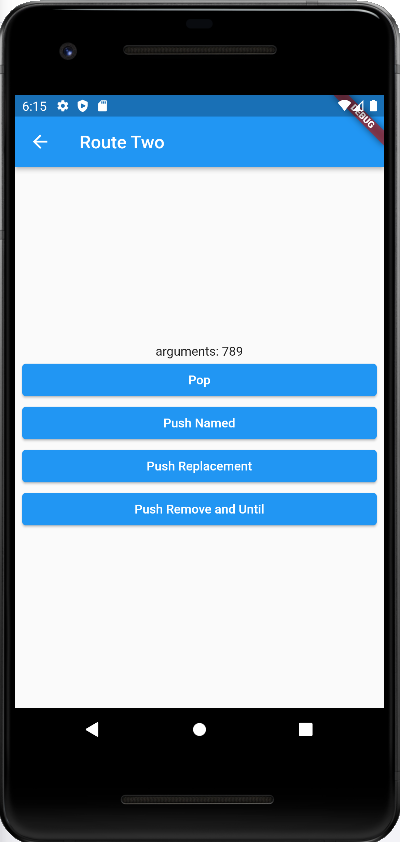

RouteTwo

RouteThree
